Overview

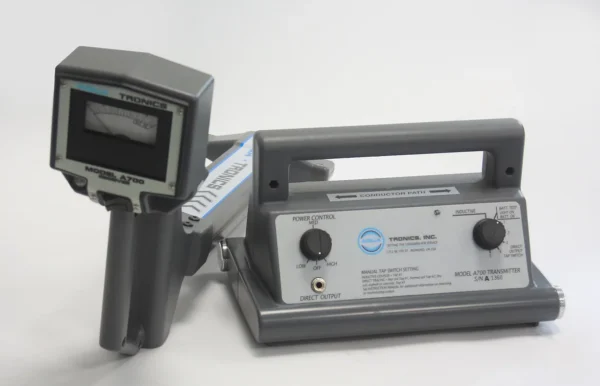

Light weight, integrated one hand control, and speed, sums up the A-700 analog pipe and cable locator. Like the time-tested A7 Cable Commander, the A-700 is an affordable analog alternative to high priced digital locators. Features include unified mechanical packaging, crystal controlled electronics, an internal inductive antenna, and one-handed operation. The A-700 system includes the receiver, transmitter, output cables, ground rod and plate, and a foam lined carrying case.

Features

• Integrated one-hand controls, speed, and simplicity sum up the A-700.
• Affordable analog alternative.
• Crystal controlled electronics.
• Internal inductive antenna.
• One hand operation.

Receiver Specifications

Operating Frequency: 117.85kHz

Antenna Mode: Switchable between Null or Peak display mode

Audio Indication: 400Hz Loudspeaker output

Visual Indication: Large analog meter

Depth Measurement: Bubble level triangulation

Operating Temperature: -10°F to 125°F

Battery Power: Six (6) 1.5 volt type ‘AA’ Alkaline batteries

Battery Life: 50 hours

Weight: 4lb.

Transmitter Specifications

Operating Frequency: 117.85kHz

Impedance Matching: Five (5) direct output setting for matched and mismatching capabilities

Output Modes: Direct output jack and internal Inductive Antenna

Operating Temperature: -10°F to 125°F

Battery Power: Six (6) 1.5 volt type ‘D’ Alkaline batteries

Battery Life: 50 hours

Weight: approx. 6 lbs.
