Overview

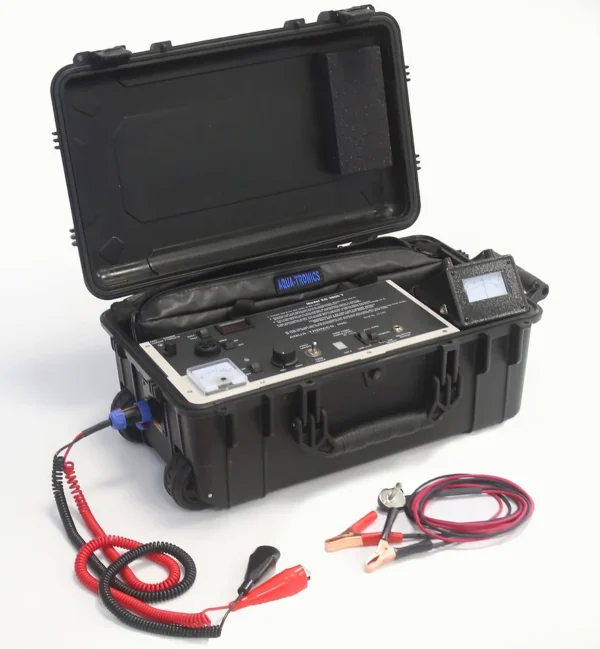

The EG-3000 is a complete system, employing the most effective fault location electronics, plus many features for safety and operational convenience. Most outstanding of these is the system's Automatic Cable-Saving Voltage Control When pulsing a line to establish a fault, the EG-3000 applies only the breakdown voltage needed. Just as important, once the breakdown or flash to ground is achieved, the voltage is automatically reduced to the minimum amount needed to keep the fault alive and the fault current is increased. Up to 2.2 amps is available to locate through asphalt and concrete or dry sand and soil.

Transmitter

• Faults up to 20 Meg-ohm.
• Over 2 amps of current available.
• Automatic voltage control.
• Up to 3kv output.
• Mains or battery operated
• Prevents cable insulation damage.
• Proof tests cables before returning them into service.
• Hook-up protection

Optional Cable Tracer

The EG-3000T is available with a built-in cable tracing system. It is a highly effective line locator featuring a high gain receiver with a swivel antenna allowing for peak, null, and depth readings with ease. It has a five step impedance matching for maximum tracing ability in all soil conditions.
