Overview

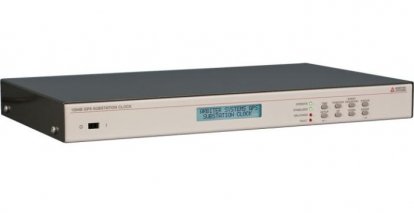

Combining world-class accuracy with value pricing. Model 1094B delivers as standard the most commonly requested features for substation applications in Arbiter's line of precision timing products
Key Features
- Accuracy < ±100ns typical; < ±250ns worst case.
- Four outputs configurable for BNC or 5mm terminal strip connectors.
- One Form C (SPDT) fail-safe relay.
- Two RS-232 and RS-422/485 ports available.
- IEEE C37.118 compliant for Synchrophasor use
Description
Standard features include a twelve channel GPS receiver with typical accuracy to < ±100ns, two serial communication ports, and four standard outputs supporting both BNC and 5mm terminal strip connections, selectable to output IRIG-B, 1 PPS or programmable pulse A or B functions.
Able to output 5V DC, the unit can easily drive multiple loads in parallel, including synchrophasors. GPS Data Back Up battery capable of maintaining the real-time clock, almanac and ephemeris data in the case of power loss
