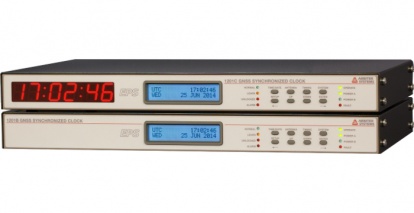

Model 1201B/C GNSS Synchronized Clock (100ns)

Overview

The 1201B/C GNSS Synchronized Clock is a multi-satellite system (GPS/GLONASS/Galileo/BeiDou) timing source for precision timing applications. Arbiter's next-generation sub-station clock provides enhanced performance and security (EPS) while supporting the standard outputs and popular options of our existing clocks. EPS benefits include multisystem timing sources, standard hold-over oscillator, multiple levels of security, secure communications, and anti-spoofing technology. The Model 1201B/C is compatible with Arbiter-Systems earlier clock models, supporting the same legacy options and outputs, while enabling the transition to a more secure device.

Key Features

Accuracy of ±100ns
Standard Unmodulated IRIG-B, Modulated IRIG-B, 1 PPS, and One Form 'C' (SPDT) fail-safe locked relay
Options include an internal NTP/PTP server, High Drive IRIG-B Outputs, and Power System Time, Frequency and Phase Monitor
1201C includes both operating status LED display and keypad, and includes a large LED time display
IEEE C37, 118, 1-2011 compliant for Synchro-phasor Use
Redundant power supply available
Second serial port standard

Enhancements

Enhanced performance and security
EPS benefits include multi-system timing sources (GPS/GLONASS/Galileo/BeiDou) standard holdover oscillator, multiple levels of security, secure communications, and spoofing technology
