Overview

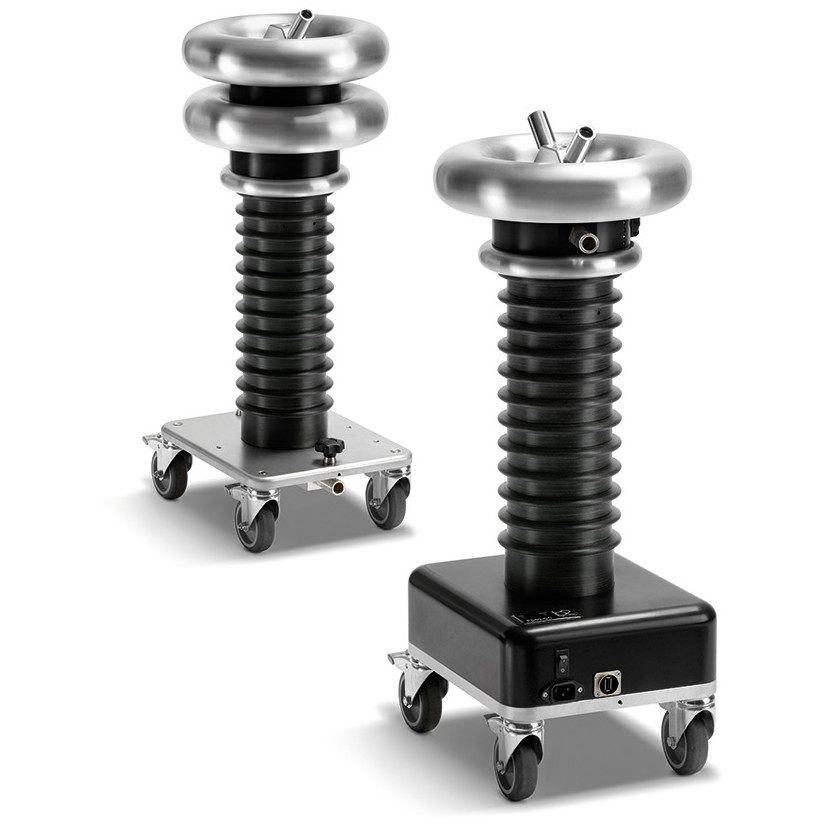

The PD60-2 and PDTD60-2 offer both portable and built-in solutions for diagnostics of medium voltage cables, rotating machines and transformers. Diagnostics of medium and high voltage cables provides the opportunity for early detection of vulnerabilities and preventative maintenance work to be carried out before the cable fails in service.

Performance

PDTD60-2 includes integrated Tan Delta diagnostics capabilities and thus features simultaneous comprehensive PD and TD diagnostics, saving time and avoiding preconditioning of the cable, which would lead to false results.

Comprehensive diagnostics

PDTD60-2 allows measurement of cables with different lengths at constant frequency, being a prerequisite for the comparison of PD and TD results from previous measurements.

Application

Suitable for testing XLPE, PE, EPR and PILC cables up to 100 km.

PD localization

Precise localization of PD faults in cables with the accuracy 1% and resolution 0.1 pC per 0.1 m.

Complete system

In combination with the HVA60 device (not in scope of supply), PDTD60-2 creates a full-featured and full-value system for 60 kV output voltage scope.

Compliance

PD60-2 and PDTD60-2 devices are in compliance with guides like IEEE 400.2 and 400.3 and standards HD 620, CEI EN 50393, IEC 60270, IEC 60502-2 and their local derivations. With PDTD60-2 - VLF testing, PD diagnostics and TD diagnostics can be carried out simultaneously, saving time and avoiding preconditioning of the cable, which would lead to false results.

Features

  • Simultaneous PD and TD measurement
  • Small, light and portable units
  • b2 Suite® - comprehensive diagnostics software and data base
  • Easy and clear process of PD measurement
  • Manual and automatic diagnostics modes
  • Saves all data automatically
  • PD-locating and phase-resolved presentation of PD
  • PD magnitude
  • High noise reduction
  • Comprehensive but easy reporting
  • Filter for suppressing noise signals
  • Measurement setup according to IEC 60270 for Partial discharge measurement and calibration
The comprehensive control and diagnostics software b2 Suite® makes the process of diagnostics easy as never before, guiding the operator step by step through the entire process. The b2 Suite® Data Base allows your data to be processed, stored and made available for future reference in just a few clicks.
