Overview

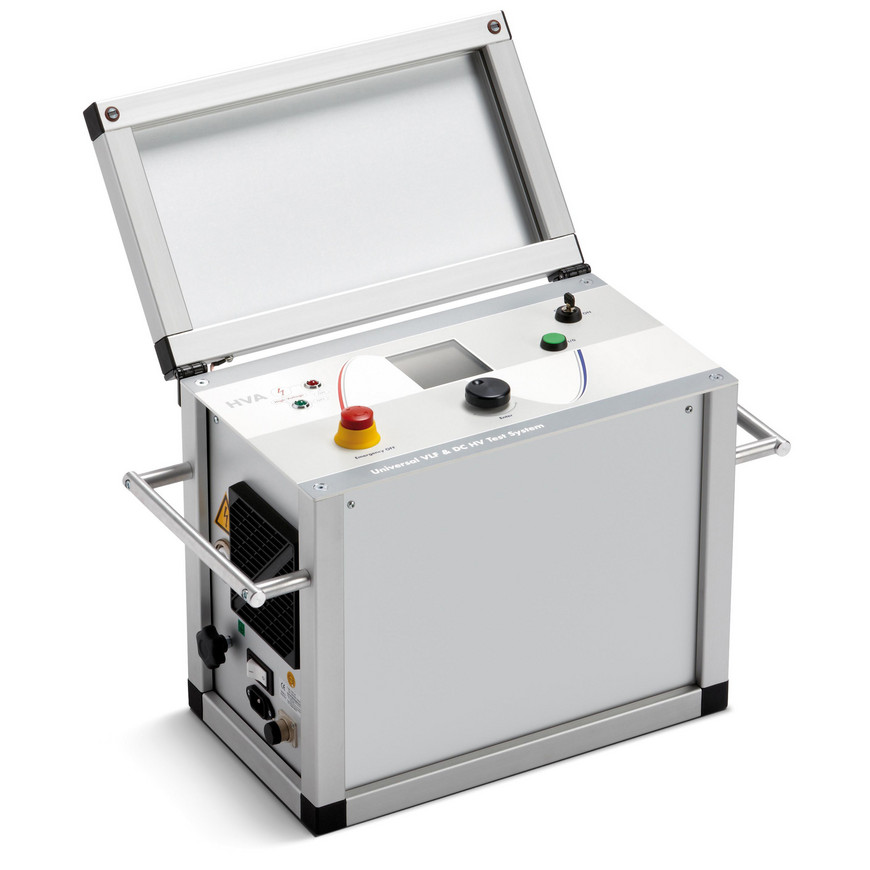

The compact design and unmatched high voltage output power to weight ratio of the HVA test sets are second to none in the market, and make the b2 electronic high-voltage generators the lightest in all classes at all voltage levels. The HVA34 test set is a dry type test system, have no oil filled components. This means less maintenance, compact and lightweight design and no limitation of operating time.

Safety

The instrument has two independent earthing devices (electronic and mechanical discharging) and a 12 kV feedback protection system to protect both operator and instrument.

Features

• Output voltage 29 kVpeak , 21 kVrms
• Pure sinusoidal output voltage (load-independent)
• Internal TD measurement with high accuracy (1 x 10-4)
• Tan Delta measurement with various frequencies (0.01-0.1 Hz)
• Leakage Guard® -
• leakage current correction
• Output current 20 mA max.
• 0.5 μF @ 0.1 Hz @ 20 kV rms
• Highest test capacity of 10 μF
• Ultra light and compact weight (14 kg)

Connectivity

On-site, no external PC is needed. All results can be downloaded later by USB for further investigation and easy report creation on the PC software.

Solid HV connectors

Robust HV-connectors allow the use of different HV test lead lengths, the quick exchange for a replacement cable, or the simpler upgrade path for connection of diagnostics systems.

Unlimited operating time

Operating time of the HVA high voltage generators are not thermally limited and can be operated continuously
