Overview
The capacitors are of sturdy and rugged and are for indoor operation. Insulation is reinforced epoxy fiberglass tube filled with oil.
Decouples partial discharge signals from device under test (DUT) when used with an optional measuring impedance (AKV/AQS).
Measures AC voltages in the industrial frequency range (when used with an optional secondary unit (SEK)).
Attenuates interferences coming from the HV side and improving signal to noise ratio (SNR) of the PD measuring circuit (together with an optional HV filter).

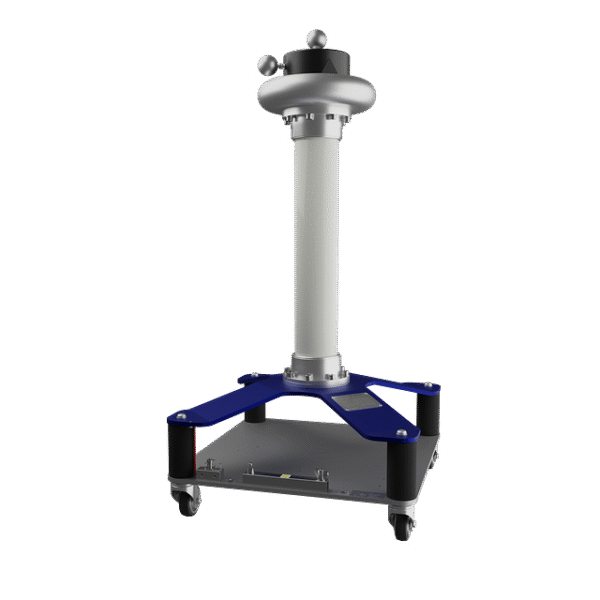

The standard design includes a base frame with swivel castors for mobility and an appropriate upper toroid.
Features
- Base frame with heavy duty swivel castors
- High stability capacitance values
- Guaranteed optimal frequency bandwidth
- PD free (< 1 pC)
- Modular design
- Measuring impedance for PD measurement (optional)
- Secondary Unit for AC measurement (optional)
- HV filter (optional)
