Overview

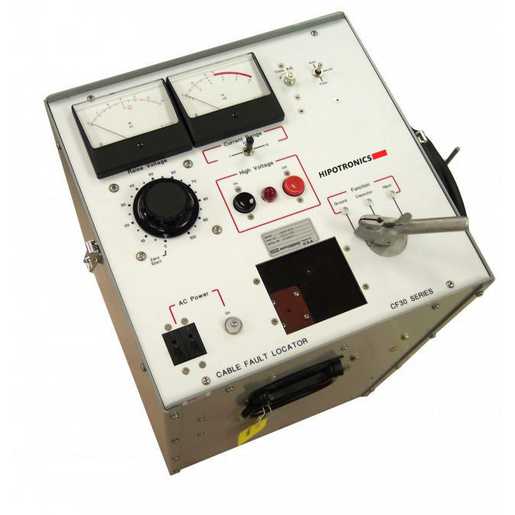

Hipotronics CF Series test systems for fault locating of primary cables consist of a DC proof tester, a Burner and a Capacitive Discharge Fault Locator (thumper). These self-contained portable units are rugged, reliable and compact making them ideal for field use, The CF30-8 has a continuously adjustable impulse rate from three (3) to thirty (30) seconds. Test ratings are a 30kV DC proof test voltage, a 50mA burn current and a 0 to 15kV DC capacitance discharge (thumper) voltage. The units can be used with high voltage coupler (4100 Series) and a time domain reflectometer (TDR) to quickly provide a specific distance to the fault in feet or meters. This combination of equipment can greatly reduce the amount of high voltage (number of thumps) the cable resulting in reduced damage or degradation to the cable under test For additional pinpointing the FLASH PHONE (H-FLASH) acoustic detector can be used in conjunction with the C30-8 to pinpoint the exact underground location. While the CF "thumps" the cable the user "listens" to the thumping using the Flash Phone and can pinpoint where to start digging to repair the fault.

Features

• Self-Contained Features Proof Tester, Burner and thumper.
• Burns Current to 50mA.
• Internal discharge solenoid.
• Impulse Energies of up to 900 Joules.
• Automatic and Manual Thumper mode.
• External interlock provisions.
• Operate from Line Voltage or Generator.
• Single HV Output Cable.
• Indicator Lights mode.

Benefits

• Accurate Fault Identification and Location.
• One Unit for URD Cable Maintenance Testing.
• User Safety - visual verification of grounding status via face panel window.
• Repeatable Impulse level.
• Variable Impulse Rate from 3 to 30 seconds
